POLISHING MACHINES
Polishing machine PSW18
Einsatzbereich
Rotary Working Tool
Ergonomically designed swinging arm
Bedienung
Quick amotisation
Technical data
Electrical supply:
Vacuum pump:
Weight:
Dimensions:
Tools:
Work bench:
230V/50Hz Main driver 1,6KW
Frequency controlled: ‐1500 U/min
230V/50Hz 0,18 KW, ‐850 mbar
approx. 350 kg
approx. height: 1250 – 1500 mm
approx. length: 1300 mm
approx. width 800 mm
Polishing Pad 150 mm
Brushes 150 mm
Buffing wheels 300 mm
Phenolic resin table incl. rubber pads (resistant against liquids e.g. polishing liquids)
POLISHING MACHINES
Polishing machine PM-88 (Polishing block)
Technical data
Total length:
Total height:
Total depth:
Side reach:
Finish table size:
Usable polishing width:
Height of the polishing shaft:
Polishing ring diameter:
Current consumption:
Rotational speed:
Total weight:
1600 mm
1200 mm
1000 mm
440 mm
350 x 350 mm
200 mm
900 mm
ø = 450 mm
4 KW / 380 V
1000 n
ca. 400 kg
Optional:
• Continuously variable rotational speed control
• Various compatible supporting tables for processing large workpieces
POLISHING MACHINES

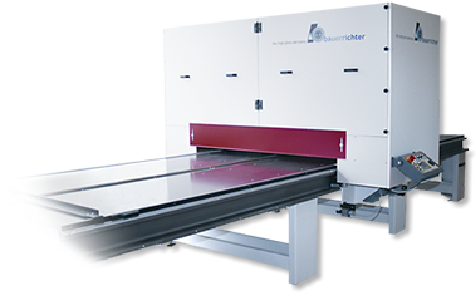

Polishing machine ESR 1
Technical data
Power requirement:
Control voltage:
Total length:
Total height:
Total depth:
Total weight:
Working plane:
Working height:
Polishing ring diameter:
Feed rate:
Oscillation speed:
Controller:
20 KW / 380 V
24 Volt
5600 mm
2100 mm
2400 mm
2000 kg
1350 mm x 3200 mm
< 200 mm
ø 400 mm
frequency controlled
frequency controlled
programmable
Optional:
• Vacuum clamping of the workpieces
• Extension of the working plane
• Additional polishing units
POLISHING MACHINES

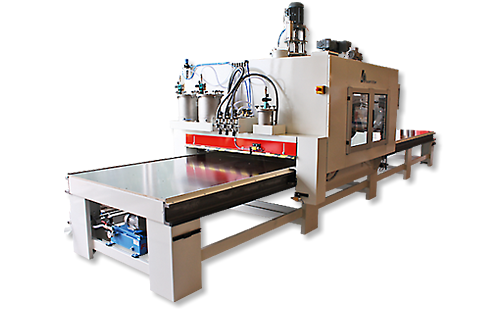

Polishing and buffing machine GPM-4
Technical data
Total length:
Total height:
Total depth:
Working surface:
Max. processing height:
Polishing ring diameter:
Clamping device:
Polishing agent dosing:
Current consumption:
Total weight:
8050 mm
2600 mm
2150 mm
1350 x 3200 mm
100 mm
ø 350 mm
Vacuum
manual
28 KW / 380 V
ca. 5000 kg
Features:
• 1 working plane with vacuum clamping
• 4 rotating oscillating rollers
• programmable polishing and buffing units
• buffing with 4 special rotating discs
Optional:
• Individual working surface dimensions
• Automatic polishing agent dosing
• Integrated Bauerrichter measurement system
• Tele-online service
POLISHING MACHINES

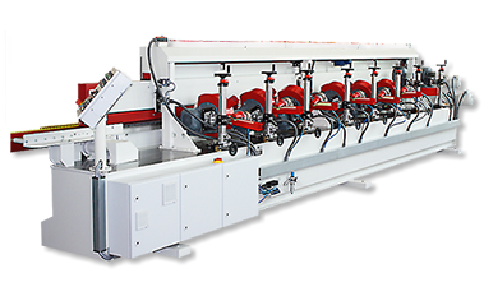

Edge polishing machine KPM-8L
Technische Daten
Total length:
Total height:
Total depth:
Polishing ring diameter:
Compressed air connection:
Min. workpiece length:
Min. workpiece width:
Workpiece height:
Feed:
Power consumption:
Total weight:
8000 mm
1550 mm
1300 mm
ø 350 mm
6 bar
100 mm
65 mm
8-80 mm
frequency controlled
14 KW
ca. 3500 kg
Optional:
• Pneumatic engaging and disengaging of the polishing units
using sensors to detect parts
• Programmable controller
<
>
Back to top
POLISHING RINGS / DISCS

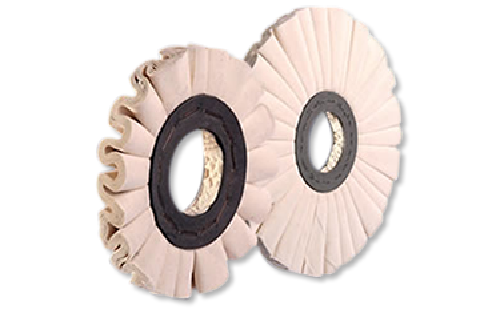

Shaft polishing rings
Material:
Sizes:
Application:
Application range:
Miscellaneous:
predominantly fine untreated cotton or molton trimming, stable ring binding
Diameter from 150 to 500
Bore from 14 to 50
Polishing of all paints, plastics
All polishing machines, self-aggregates, hand polishing machines, edge polishing machines
Other material types and dimensions available
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING RINGS / DISCS

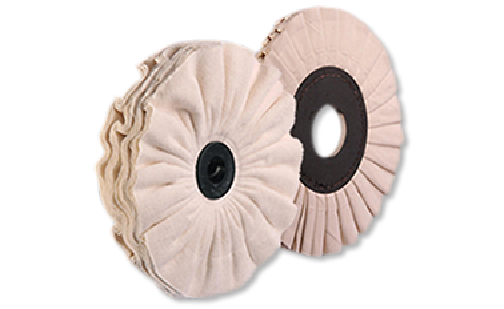

Fold polishing rings
Material:
Sizes:
Application:
Application range:
Miscellaneous:
Untreated cotton and molton trimming, cotton fabric, stable ring binding
Diameter from 125 to 500
Bore from 14 to 50
Polishing of all paints, plastics
All polishing machines, self-aggregates, hand polishing machines, edge polishing machines
Other material types and dimensions available
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING RINGS / DISCS

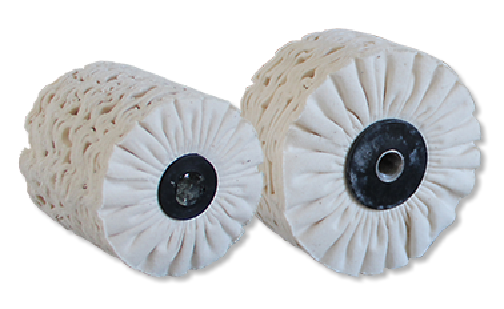

Polishing rollers
Material:
Application:
Application range:
Miscellaneous:
Cotton fabric, felt
Polishing of all paints, plastics
Polishing machines, handheld units
Various designs with ingrained plastic core and integrated thread
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING RINGS / DISCS

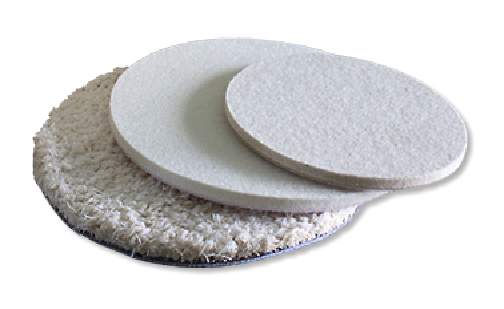

Polishing discs
Material:
Application:
Application range:
Miscellaneous:
Cotton fabric, felt or nonwoven
Polishing of all paints, plastics
Polishing machines, handheld units
Various sizes and designs available
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
<
>
Back to top
POLISHING AGENT
Polishing pastes
Material:
Container:
Application:
Application range:
Miscellaneous:
Pastes in various grain sizes
Emulsions in various grain sizes
1 kg / 15 kg / 45 kg in a plastic bucket
Polishing of all paints and plastics
Polishing machines, polishing blocks, handheld units, self-aggregates
The use of polishing pastes should be matched to the materials to be processed because different criteria have to be considered, such as rough grinding, grain size, heat generation, etc.
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING AGENT
Polish
Material:
Container:
Application:
Application range:
Miscellaneous:
Polish
1 ltr. Plastic bottle and
5 ltr / 10 ltr. / 30 ltr. plastic canister
Super-polishing and cleaning of all paints, plastics, etc., and different materials
Polishing machines, polishing blocks, handheld units
Processing with foam plates or lambskin Polish special varieties for different materials and colours, i.e. for dark colours or for removing patinas, etc.
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING AGENT
Polishing liquids
Material:
Sizes:
Application:
Application range:
Miscellaneous:
Solvent-based or water-based
30 l Plastic canister and
1 l plastic bottle,
Other container sizes on request
Cooling and cleaning of different surfaces
Polishing machines, handheld units
Also for mixing with different polishing pastes and polish
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING AGENT
Polishing wax
Material:
Container:
Application:
Application range:
Miscellaneous:
Polishing wax
Approx. 1 kg folding box
500 x 60 x 50 mm rod
500 x 90 x 50 mm rod
500 x 110 x 50 mm rod
Polishing of all paints and plastics
Polishing machines, polishing blocks, handheld units
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
<
>
Back to top
POLISHING ACCESSORIES

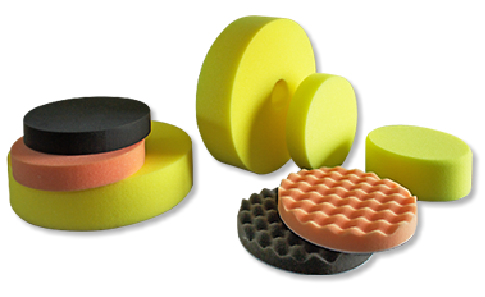

Foam discs
Material:
Sizes:
Application:
Application range:
Miscellaneous:
Different foam types, resistance and pore size
Diameter from 125 to 250
(30 - 60mm high) for sticking and with Velcro
Polishing and finish polishing of various materials
Processing of waxes, polishing pastes and polish
Polishing machines, handheld units
To be matched to the particular application (taking into account the working steps so as, for example, not to convey excessive warmth into the polishing item
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING ACCESSORIES

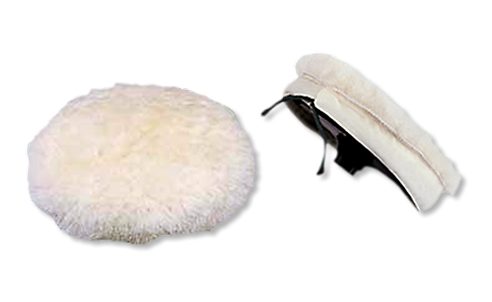

Lambskin covers
Material:
Sizes:
Application:
Application range:
Miscellaneous:
Lambskin (natural product) for binding and
with Velcro
Diameter from 125 to 190 mm
Super-polishing of paints, plastics, etc. in the
finishing area
Processing of different types of polish
Polishing machines, handheld units
Recommended especially in the finishing area with sensitive materials
Heat generation is lower than with foam discs
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING ACCESSORIES

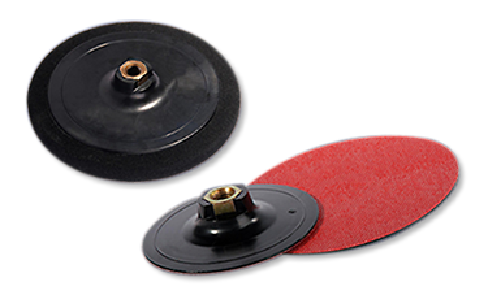

Clamping plate
Material:
Sizes:
Application:
Application range:
Rubber with plastic container M14 / Velcro
or foam rubber for lambskin for binding
Diameter of 115 mm and 150 mm / Velcro
180mm / Foam rubber for lambskin
As a driver pad for foam discs
as a driver pad for lambskin covers
Handheld units
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING ACCESSORIES

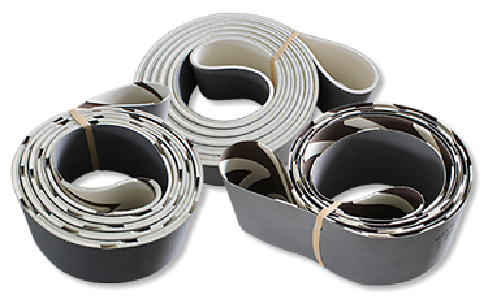

Polishing belts
Material:
Application:
Application range:
Miscellaneous:
Web polishing strips, felt polishing strips
Polishing of all paints, plastics
Polishing machines, long belt grinding machines
Various sizes and designs available
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
<
>
Back to top
POLISHING TOOLS

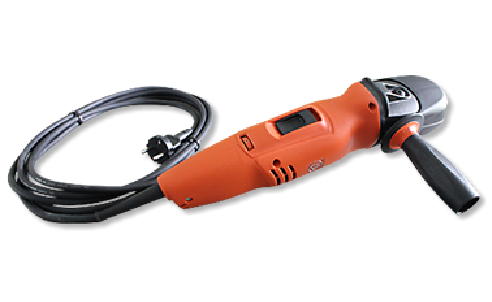

Universal Polisher - 14 - 25 E
Polishing body Ø max:
Rotational speed:
Power consumption:
Power output:
Weight:
250 mm
900 - 2500 / min
1200 Watt
750 Watt
2,5 kg
The strong polisher with rotational speed control
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
POLISHING TOOLS

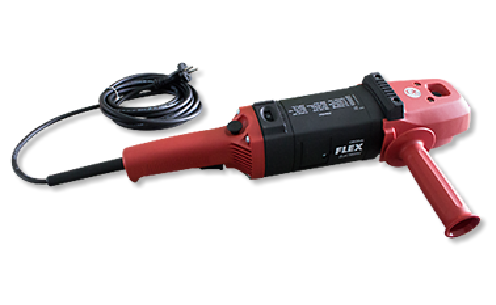

Polisher with rotational speed limitation - Flex LK 602 VR
Polishing body Ø max:
Rotational speed:
Power consumption:
Power output:
Weight:
250 mm
800 - 2400 / min
1500 Watt
1000 Watt
3,5 kg
The Universal Polisher with a wide rotational speed range
The picture and descriptions are only for rough orientation. To obtain the best results, the use of polishing and buffing agents and tools requires a high level of experience. We are always glad to develop efficient demand-oriented working methods for you.
<
>
Back to top
USED EQUIPMENT

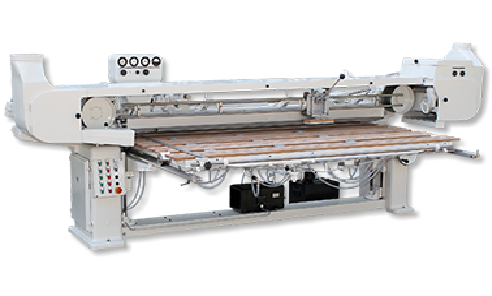

Long belt sanding and polishing machine BA2
Technical data
total length:
total height:
total depth:
Finish table size:
Sanding length:
max. processing height:
Main sanding belt
Auxiliary sanding belt:
Belt speed:
Clamping device:
Current consumption:
Total weight:
4350 mm
1600 mm
2300 mm
1300 x 2550 mm
2200 mm
200 mm
8500 x 150 mm
8500 x 100 mm
1250 - 2400 mm/sec
Vacuum
15 kw / 380 V
ca. 2500 kg
used, generally re-engineered 'Heesemann' machine
up-to-date, modified according to customer
Features:
• With continuous pressure segment belt as
• Two-belt sanding machine
• Sanding width adjustment on the pressure beam
• Sanding width adjustment on the pressure beam
<
>
